- Wide choice of heads and actuators.
- Variety of operating characteristics.
- Captive cover screws.
- Mode of operation is field adjustable.
- Internal grounding screw.
- Dustproof, oil-tight, Water-Resistant
- Temperature range -5 ํC to +70 ํC
| Operating speed | 0.5mm to 50m/sec |
| Operating frequency | Mechanically : 120 operations/min. Electrically : 30 operations/min. |
| Contact resistance | 25M Ω max. (initial) |
| Insulation resistance | 100M Ω min. (at 500 VDC) |
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals 1,500 VAC, 50/60 Hz for 1 minute between each terminals and non-current carrying metal part and between each terminals and ground |
| Vibration | Malfunction durability : 10 to 55Hz; 1.5mm double amplitude |
| Shock | Mechanical durability : Approx. 1,000m/sec2 (approx. 100G’s) Malfunction durability : Approx. 300m/sec2(approx. 30G’s) |
| Ambient temperature | Operating:-50oC to+70 ํC |
| Humidity | 95%RH max |
| Service life | Mechanically : 10,000,000 operations min Electrically : 300,000 operations min. |
| Degree of protection | IEC 529 class IP65 |
| ลิมิตสวิตช์ | |

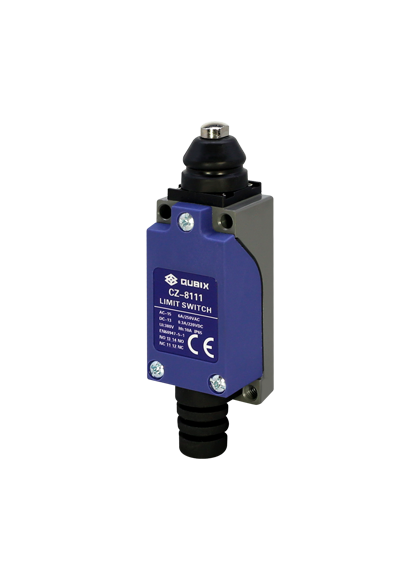

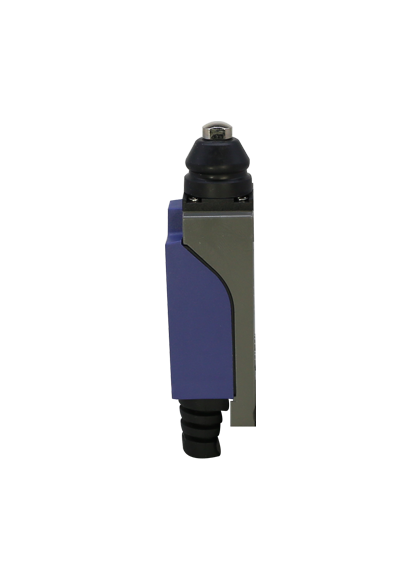

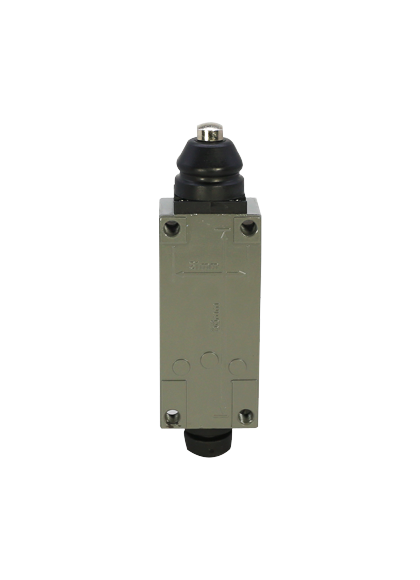

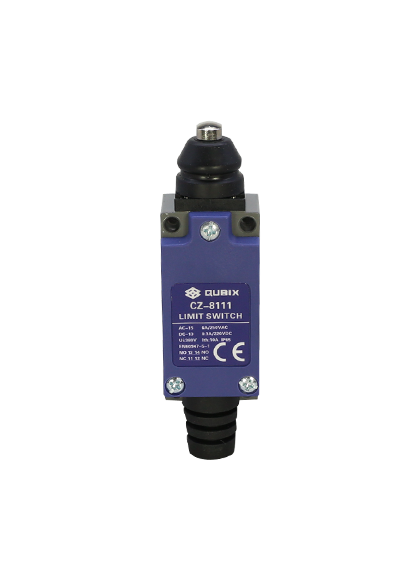

| ลักษณะหน้าสัมผัสทำงาน | Top Plunger |
| Rated Current / Voltage | 5A / 250V |
| Contact Type | DPDT 1NO, 1NC |
| Terminal Type | SCREW TYPE |
| Packing Pcs/Box | 10 |
| Types of actuator | |
| OF max (g) | 900 |
| RF min (g) | 150 |
| PT max (mm) | 1.5 |
| OT min (mm) | 4 |
| MD max (mm) | 1 |
| OP (mm) | 26 + 0.8 |
| Rated Voltage |
Non-inductive load | Inductive load | ||||||
| Resistive Load | Lamp Load | Inductive load | Motor Load | |||||
| N.C. | N.O. | N.C. | N.O | N.C. | N.O | N.C | N.O. | |
| 125 VAC | 5 | 5 | 1.5 | 0.7 | 3 | 3 | 2 | 1 |
| 250 VAC | 5 | 5 | 1 | 0.5 | 3 | 3 | 1.5 | 0.8 |
| 8 VDC | 5 | 5 | 3 | 3 | 5 | 4 | 3 | 3 |
| 30 VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 |
| 125 VDC | 0.4 | 0.4 | - | - | - | - | - | - |
 |
 |
- Wide choice of heads and actuators.
- Variety of operating characteristics.
- Captive cover screws.
- Mode of operation is field adjustable.
- Internal grounding screw.
- Dustproof, oil-tight, Water-Resistant
- Temperature range -5 ํC to +70 ํC
| Operating speed | 0.5mm to 50m/sec |
| Operating frequency | Mechanically : 120 operations/min. Electrically : 30 operations/min. |
| Contact resistance | 25M Ω max. (initial) |
| Insulation resistance | 100M Ω min. (at 500 VDC) |
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals 1,500 VAC, 50/60 Hz for 1 minute between each terminals and non-current carrying metal part and between each terminals and ground |
| Vibration | Malfunction durability : 10 to 55Hz; 1.5mm double amplitude |
| Shock | Mechanical durability : Approx. 1,000m/sec2 (approx. 100G’s) Malfunction durability : Approx. 300m/sec2(approx. 30G’s) |
| Ambient temperature | Operating:-50oC to+70 ํC |
| Humidity | 95%RH max |
| Service life | Mechanically : 10,000,000 operations min Electrically : 300,000 operations min. |
| Degree of protection | IEC 529 class IP65 |
| ลิมิตสวิตช์ | |
| ลักษณะหน้าสัมผัสทำงาน | Top Plunger |
| Rated Current / Voltage | 5A / 250V |
| Contact Type | DPDT 1NO, 1NC |
| Terminal Type | SCREW TYPE |
| Packing Pcs/Box | 10 |
| Types of actuator | |
| OF max (g) | 900 |
| RF min (g) | 150 |
| PT max (mm) | 1.5 |
| OT min (mm) | 4 |
| MD max (mm) | 1 |
| OP (mm) | 26 + 0.8 |
| Rated Voltage |
Non-inductive load | Inductive load | ||||||
| Resistive Load | Lamp Load | Inductive load | Motor Load | |||||
| N.C. | N.O. | N.C. | N.O | N.C. | N.O | N.C | N.O. | |
| 125 VAC | 5 | 5 | 1.5 | 0.7 | 3 | 3 | 2 | 1 |
| 250 VAC | 5 | 5 | 1 | 0.5 | 3 | 3 | 1.5 | 0.8 |
| 8 VDC | 5 | 5 | 3 | 3 | 5 | 4 | 3 | 3 |
| 30 VDC | 5 | 5 | 3 | 3 | 4 | 4 | 3 | 3 |
| 125 VDC | 0.4 | 0.4 | - | - | - | - | - | - |
|
|
